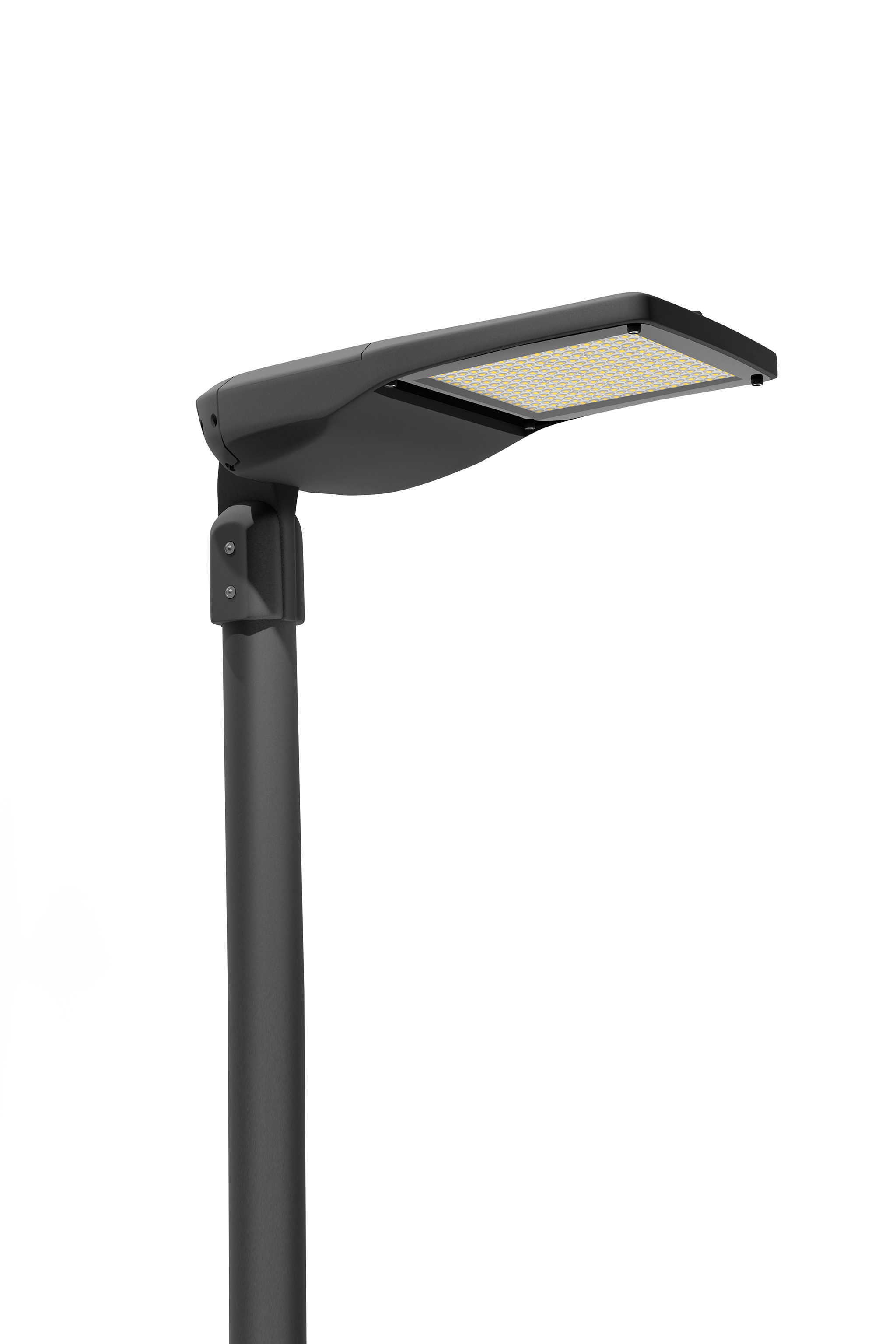

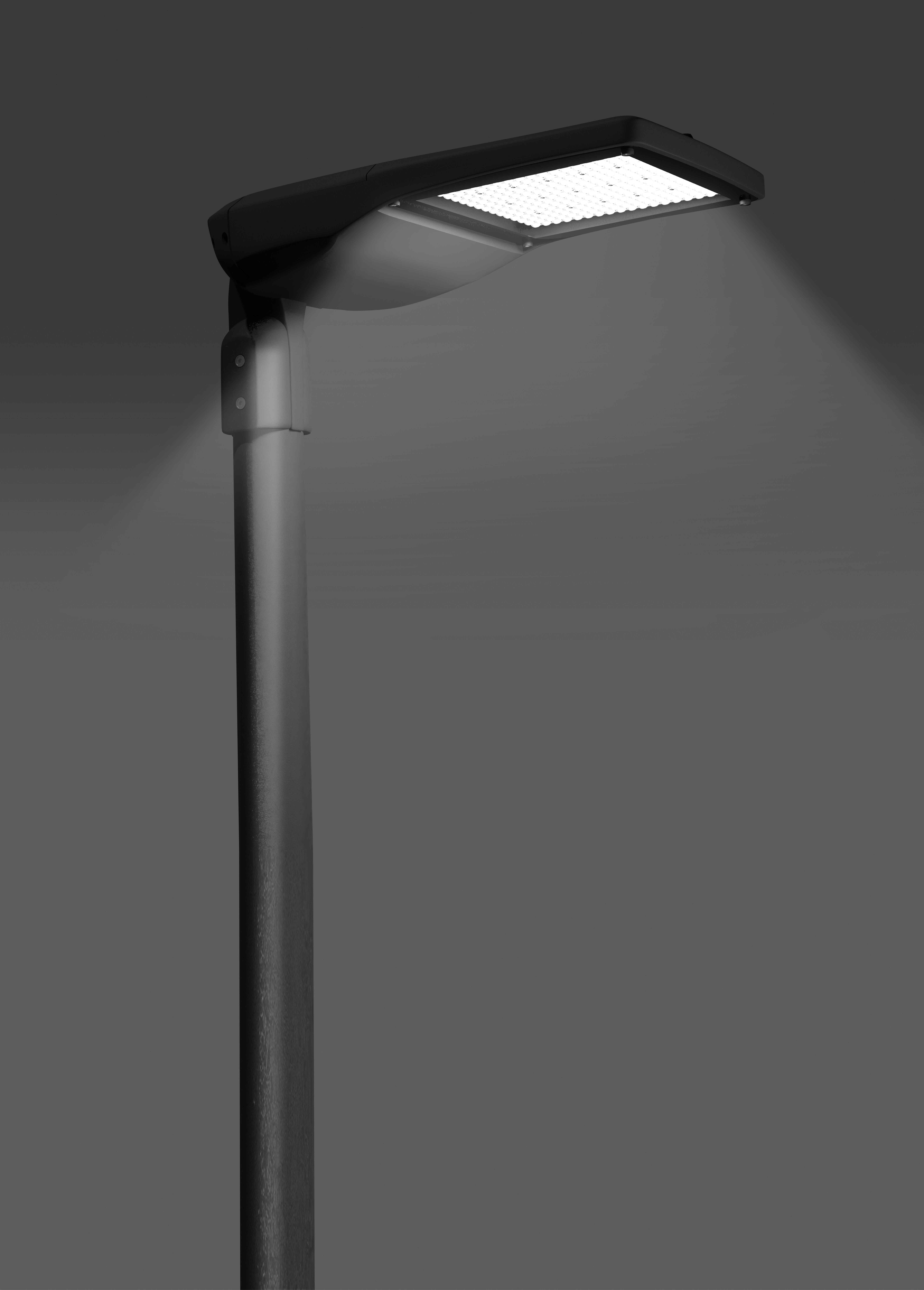

Zabra X Series

Outdoor Lighting
Pole-Top Luminaires

With its unique design and angled
light source, Zabra series is a perfect
solution for both funcitonal and decorative
outdoor lighting.

Standart Color Options
Technical Specifications

Nominal Power (W) 150 W -240 W
Luminous Flux (lm) 19500 - 31200 lumen
Efficacy (lm/W) 115 - 130 lm/W
Nominal Voltage (V) 220 - 240 V / 50 - 60 Hz
Power Factor > 0.95
IEC Protection Class Class I
Ingress Protection IP 66
Impact Protection IK 09
Colour Rendering Index (CRI) > 80
Colour Temperature (K) 3000 - 6500 K
Operating Temperature (Ta) Outdoor -20 °C / +50 °C
Diffuser Tempered Glass
Optic PMMA
Surge Protection (kV) 6 - 10 kV
Housing Die-Cast Aluminum
Mounting Diameters Ø42 mm - Ø76 mm

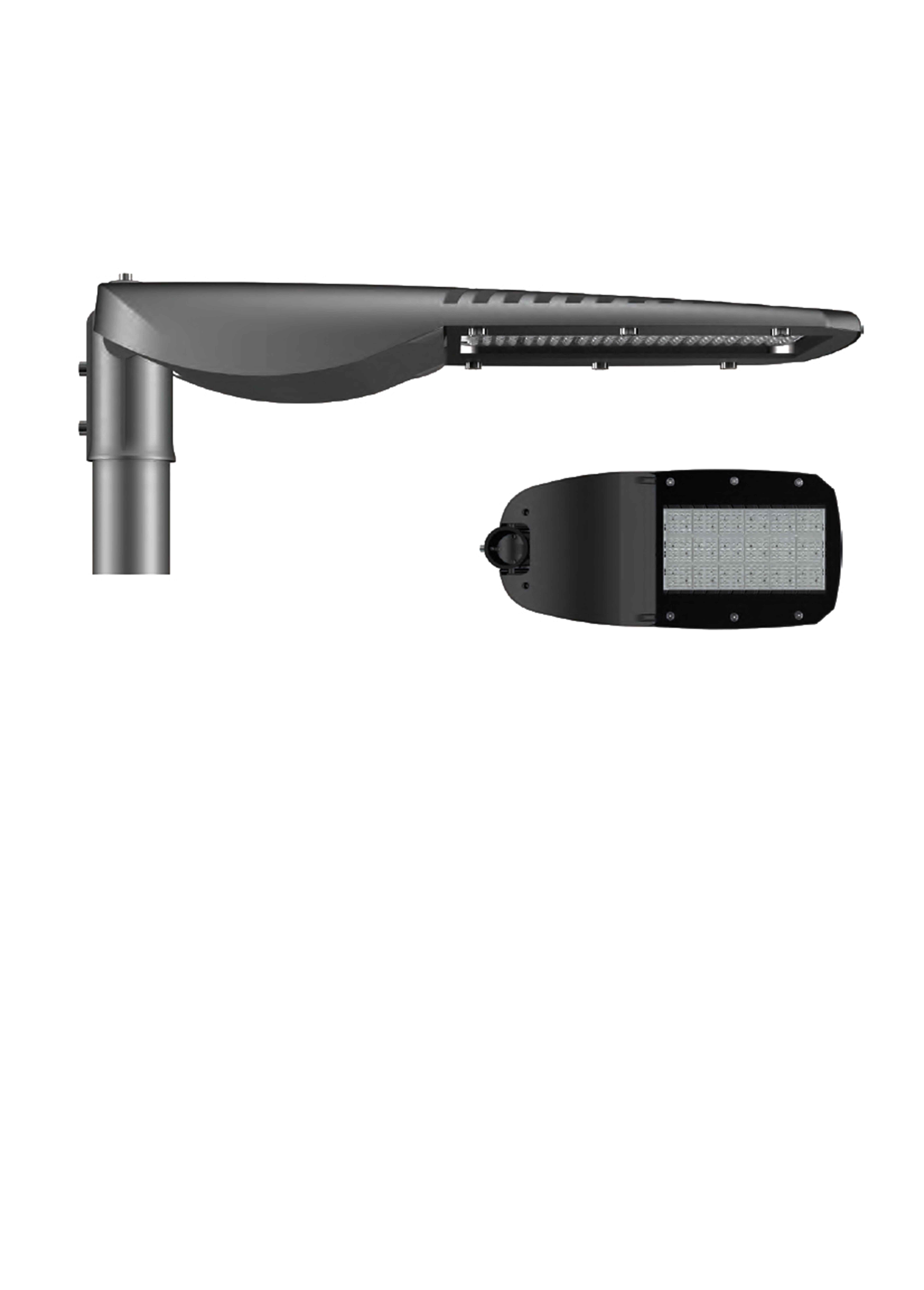

Dimensions and Weight 744 x 310 x 105mm
Colour Options All RAL colours

Model Variation Options
Variation Image Model Code Lighting Watt Size Product Document
ZBRX 3116 LED 150W 105(H) x 745(A) x 510(B) X 19500 Lumen
ZBRX 3117 LED 180W 105(H) x 745(A) x 510(B) x 23400 Lumen
ZBRX 3118 LED 200W 105(H) x 745(A) x 510(B) x 26000 Lumen
ZBRX 3119 LED 220W 105(H) x 745(A) x 510(B) x 28600 Lumen
ZBRX 3120 LED 240W 105(H) x 745(A) x 510(B) x 31200 Lumen
